TECHNICAL REASONS

The important parts of a mechanical watch are mainly those that move, i.e. gear trains, the balance and the escapement. In early times, the fine pivots of these pieces turned directly in holes drilled into two brass plates separated by pillars. In order to facilitate assembly and repair, the upper plate was later replaced by separate elements, called "bars" (also "bridges" or "cocks" depending on the number of supports).

The lower brass plate (called "bottom plate") was drilled with small holes in which the other ends of the pivots turned. These holes also contained small oil sinks from which the oil flowed into the holes to lubricate the pivots. With time, though, dust from the air collected in the oil sinks. This resulting mix of oil and dust formed an abrasive substance which acted like sandpaper, slowly filing away the softer brass of the plate and to some extent even the harder steel pivots. With continued use, the abrasive action of the oil-dust mixture working in concert with the turning action of the pivots caused the holes to become oval. The watch would then start to work erratically, finally stopping.

These observations led watchmakers to look for a material harder than brass that would withstand more wear and tear from the pivots. The substance they turned to was the ruby, a material second only to the diamond in hardness.

A BIT OF HISTORY

The use of the ruby goes back to 18th century England (at the time the cradle of quality horology) where watchmakers first had the idea of using small ruby pellets (called jewels) as bearings for the pivots of the balance. The technique of drilling the ruby was invented by a Swiss optician and astronomer, Nicolas Fatio, who went to England in the hope of exploiting his invention. He tried to obtain a "royal privilege" for his technique which they wrongly claimed was already in use. In the end, Fatio did not receive the privilege and other skillful workers set about producing drilled ruby pellets for the watch trade.

In those days stones were second-rate rejects from the jewelry trade. The technique allowing fro precision drilling of the rubies gave the British watch industry supremacy over continental horology for about 20 years. After that, French watchmakers such as Abraham-Louis Breguet brought over English craftsmen (and their jeweling techniques to work for them in France. This market the beginning of the end of the British monopoly.

For many years, this relatively costly labor-intensive technique limited jewels exclusively to very high quality watches. Slowly their manufacture became more industrial and their pieces more accessible to other aspects of watchmaking.

SYNTHETIC RUBIES

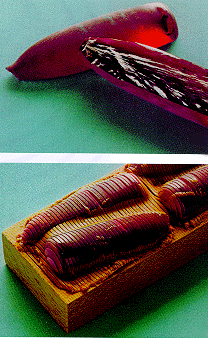

A further decrease in price accompanied the creation of synthetic rubies, based a method developed in 1902 by August Verneuil, Professor in Paris' Conservatoire des Arts et Métiers. In fact, synthetic rubies, as well as their natural counterparts are corundum, i.e. crystal-line aluminum oxide.

In the industrial fabrication process, the basic component alumina (aluminum oxide) undergoes a series of operations, i.e. purification, heating, fusion and crystallization, which results in pear-shaped pieces of artificial ruby. Chromium oxide is added to get the red color of natural rubies.

The large-scale manufacture of rubies permitted the creation of abundant quantities of these synthetic stones, more homogeneous in quality than the ones found in nature. The jewelry trade takes most of these stones. In watchmaking, the cost of the rubies came mostly from the labor needed to drill and set them, as the cost of the raw material was relatively low. Having said this, it must be noted that from beginning to end-product, about 90% of the ruby is destroyed, with only the remaining 10% usable for watches. Up until 1930, the ruby pellets were jewelry-fitted into the brass, but later, the technique of driving (pressing) them into the plates was adopted, thus lowering production costs even more.

A COMMERCIAL GIMMICK?

In the mind of the public, the idea that watches contain jewels give them a certain added prestige value. Manufacturers were quick to exploit this belief and started to add unnecessary stones to increase the prices of their products. The term "upjeweling" was an American term coined to refer to this dubious practice which was fairly widespread in the U.S. at the time. It was finally abolished by the U.S. Customs authorities who disallowed "upjeweled" imports from entering the country. There are some, however, who suggest that their real motives may have been less noble and that this was merely a kind of camouflage protectionism for the U.S. watch industry.

Today, Swiss watchmakers no longer use this questionable practice and their advertisement is not based on the number of jewels in a movement. The total number of rubies, i.e. "jeweling", can vary. In a simple hand-wound mechanical watch, the number of jewels varies from a minimum of 14 to a maximum of 19.

In automatic or complicated watches, where there are more moving parts, the number of rubies is higher. Once in awhile, someone will hear a rumor that a what repairer has stolen the rubies out of a watch and replaced them with brass bearings. This is a totally baseless myth. For the watchmaker to remove the rubies and replace them with brass would require a lot of effort and would certainly not be worth his time given that the jewels cost only a few cents to buy.

To sum it all up, having jewels in a watch is certainly a factor that adds to its overall quality. They are indispensable for the long-life and correct functioning of a good quality watch.
