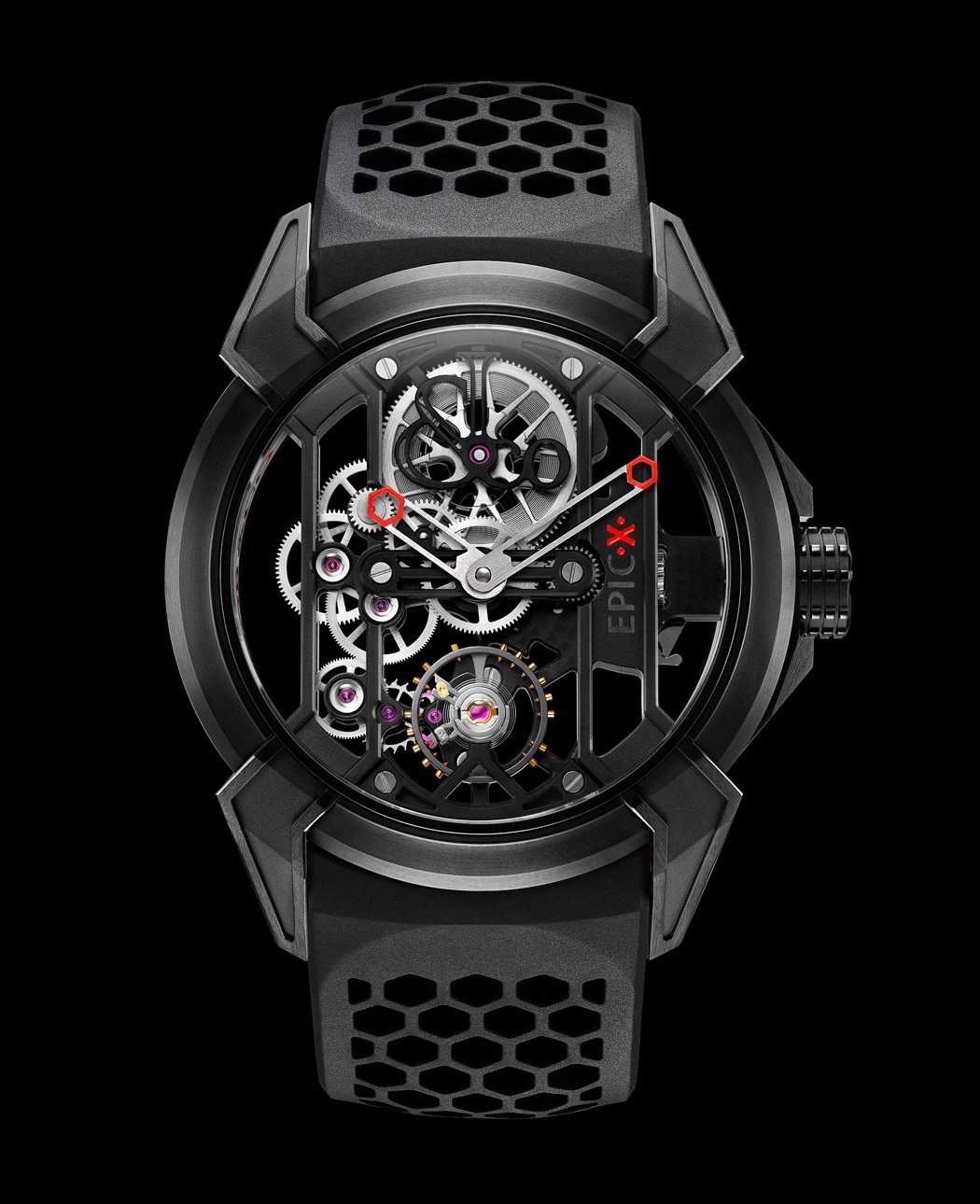

EPIC X by Jacob & Co

Español Pусский
January 2014


MOVEMENT

Caliber : Exclusive manually wound Jacob&Co JCAM02 skeleton calibre Barrel and balance wheel vertically aligned; 48-hour power reserve.
Functions: Hours, minutes.
Frequency: 28’800 vib/h (4 Hz);
Diameter: 14.25 mm, 6¼’’’
Jewels: 21 jewels;
System: Barrel with sliding clamp system; balance screws visible on the front side; visible time setting mechanism on the case back, time setting spring with three functions (“octopus spring”): ratchet, lever and setting lever.
Finishing: “Jacob & Co” upper bridge; sand blasted, angled and drawn-finished bridges; red lacquered “Epic X” engraving on the right-side bridge; mirror-polished finishing screws; circular grained bridges on the back.

CASE

Diameter: 44mm
Material:Black PVD grade 5 titanium
Thickness: 12.3 mm
Finishing: micro blasted and satin-finished; “Jacob & Co.” logo in the inner ring.
Crystal sapphire with anti-reflective treatment on both sides
Water resistance: 50m or 5 ATM

DIAL & HANDS

Hands: skeleton

STRAP & CLASP

Openwork “honeycomb” rubber or Alligator Strap; adjustable deployment clasp.

WATER RESISTANCE

50 meters
