Urban Jürgensen: the first detent escapement made for a wristwatch

Español 中文
August 2011


Among all of the so-called ‘free’ escapements, the detent escapement, which appeared during the 18th century, is considered one of the Grails of chronometric precision. Historically, the role of the detent escapement in the search for chronometry is more important even than that played by the tourbillon. Yet, we find it mostly in marine chronometers, where it is mounted on gimbals since one of its major weak points, or more precisely its primary weak point, is its great sensitivity to shocks. This is undoubtedly one of the reasons why this historical escapement had been confined to marine chronometers until now.
And now, a new version of the detent escapement has been designed specifically for a wristwatch: the Chronometer UJS08, by Urban Jürgensen & Søhner.

Exceptional chronometry to make smaller...
In comparison to the traditional Swiss lever escapement, the detent escapement has a few notable differences, which allow it to have the best mechanical performance of all the free escapements. Contrary to the lever escapement, the detent escapement does not have a palette-stone lever but a pivoted, equilibrated detent with reduced inertia and, in the specific case of the USJ08, a smaller size. This detent acts solely on the stoppage of the escape wheel, while in the lever escapement, the action of the fork allows the stoppage of the escape wheel as well as transmits the energy of the driving force to the balance. Thus, the latter normally receives two impulses per oscillation, while in the detent escapement, the balance only receives one impulse per oscillation. In the same manner, in the lever escapement, the transmission of the impulse to the regulator organ is carried out directly by the escape wheel. These different particularities are easily observable, both from an auditory point of view because the sound of the watch (its tic tac) is quite different, and from a visual point of view because the tic by tic advance of the seconds hand is clearly visible.
More importantly for the timekeeper’s ef-ficiency and chronometry, the friction is reduced to only one place, and lubrication is also considerably reduced. But the Achilles Heel of the detent escapement, as we stated earlier, is its great sensitivity to shocks.

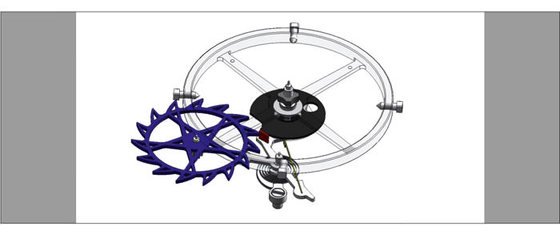

Urban Jürgensen: the first detent escapement made for a wristwatch Detent plate

...and a problem to overcome
The team working on the Urban Jürgensen project is composed of Jean-François Mojon (owner of Chronode SA, and also author of the Opus X), who designed the movement’s technical project, and Kari Voutilainen, who is in charge of its assembly and finishing. They overcame the problem of shocks, or more precisely they solved it, by designing a limiting plate that would permit—as its name implies—limiting, to the maximum possible, all movement of the detent that would be caused by a shock. (This special plate is part of the worldwide patent for this timepiece.) The very small detent itself was also designed in a very equilibrated way in order to make it less sensitive to shocks. This shock resistance was duly tested as Chronofiable, having been subjected to 20,000 shocks during two weeks.
Designed from scratch, the basic movement of the USJ08, featuring 3 Hz (21,600 vibrations per hour), has two barrels in series that provide a power reserve of 100 hours (indicated by a differential system, also patented), thus giving this escapement an even further advantage. The large variable-inertia balance is equipped with a free balance spring. The profile of the escape wheel teeth has also been optimized in order to reduce the friction even more thanks to a greater rigidity and reduced inertia. Compared to 300 other COSC-certified movements, the USJ08 demonstrates an operational stability that has been improved by 40 per cent. In pure chronometric terms, the performance ranges from +/- 1 second while the average COSC-certified watches range from 0 / + 6 seconds.

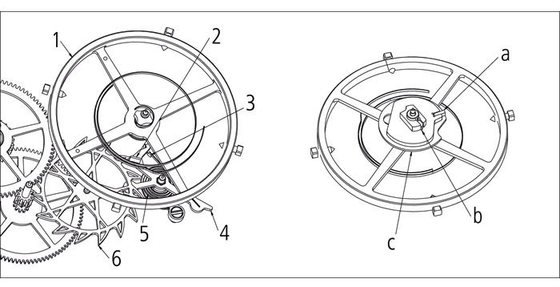

Urban Jürgensen: the first detent escapement made for a wristwatch 1. Balance, 2. Locking palette, 3. Detent-spring, 4. Detent: reduced inertia, 5. Detent balance-spring, 6. Escapement wheel.
a. Impulsion palette, b. Unlocking palette, c. Limiting plate

The dream team
The initiative to adapt the detent escapement to a wristwatch came from the late Peter Baumberger, who, until his death in 2010, presided over the destiny of the historic Urban Jürgensen brand, a pioneer in chronometry and the detent escapement. Wanting to revive the spirit of Jürgensen, Peter Baumberger—whom Kari Voutilainen likes to describe as a man of extremely high standards with an ‘exceptional eye’—launched his ‘crazy’ project a few years ago. He was unfortunately, however, not able to see his work completed. After his passing, the company was taken over by his friend Helmutt Crott, an avid collector and an organ-izer of auctions. He continued Baumberger’s project, bringing in Kari Voutilainen and Jean-François Mojon, along with some specialists: Roland Tille for dials (former director of Stern dials, acquired by Patek Philippe) and Jean-Pierre Ackmann, a case manufacturer for 40 years.
This world first is thus placed in a case and under a dial exhibiting the highest form of classicism, realized with talent, finesse, and subtlety. And, Kari Voutilainen, of course, brings the superlative finishing to the movement that it deserves. The first pre-series of 80 pieces has been produced, of which 50 are equipped with a detent escapement (in a gold case, its price ranges from 52,000 to 55,000 CHF). The other 30 have the classic Swiss lever escapement and sell for 22,000 CHF. The difference in price between these two types of escapements is not explained only by the innovative technology, but also by the process of fabrication that is, for the moment, highly artisanal for the detent escapement.
Kari Voutilainen maintains that theoretically he could produce approximately a hundred or so pieces per month. But starting now, Jean-François Mojon is working on a list of strict specifications, including an in-depth reflection on the mounting and assembly, in view of its eventual industrialization. Helmutt Crott also does not preclude the possibility of perhaps making this original escapement available to third parties within a year or so. Discussions are already underway “with large Swiss brands”. This is definitely an adventure to follow closely.

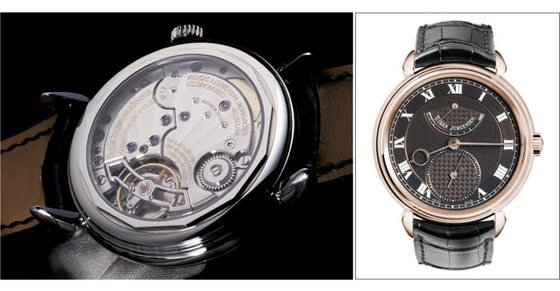

Urban Jürgensen: the first detent escapement made for a wristwatch

Source: Europa Star August - September 2011 Magazine Issue
