HYT Conical Tourbillon Panda limited edition

May 2024


HYT Conical Tourbillon Panda limited edition

This new watch creation showcases an exceptional range of craftsmanship and expertise, masterfully merging the watchmaking artistry of HYT’s celebrated conical tourbillon with the scientific innovation of its fluidic module and the precious exclusiveness of natural white agate gemstone.

T

he new HYT Conical Tourbillon Panda epitomises the seamless fusion of mechanical finesse with the refined charm of agate. This masterpiece draws its power from bold contrasts and distinctive character, marrying the intricate conical tourbillon with the elegant allure of white agate.

HYT, a pioneer in fluidic watchmaking mechanics, continues to redefine the standards of modern haute horlogerie with its unmistakable style. The new HYT Conical Tourbillon Panda timepiece represents the ultimate expression of this approach, standing out with a highly sophisticated mechanism and an exceptional aesthetics.

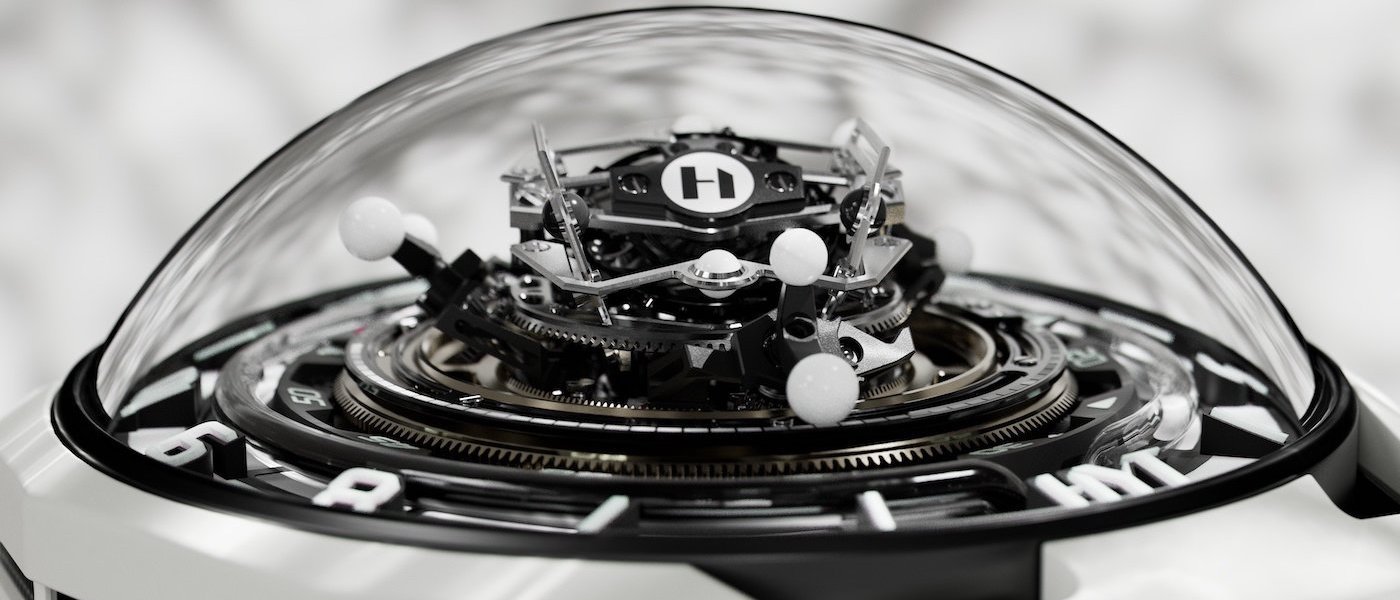

At the heart of the dial proper, the fluidic hour display and the conical tourbillon, adorned with three handcrafted spheres of natural white agate, come to life in a poetic ballet.

On the wrist, the HYT Conical Tourbillon Panda captivates with its character, while revealing the full horological expertise of HYT.

Every single detail, from the 701 TC caliber’s refined finishes to the white agate chapter ring, and continual interplay between black and white, bears witness to the craftsmanship excellence of the house. The conical tourbillon movement is elevated as it springs to life at the very core of the mechanics, with its balance wheel inclined at 30 degrees, its escapement wheel at 15 degrees, and the anchor at 23 degrees.

This achievement is rooted in the bold engineering directly inspired by the work of German watchmaker Walter Prendel, which centred on an inclined balance tourbillon that was initially positioned at 6 o’clock. In his workshops in Groitzsch, a small town in the region of Saxony, itself as renowned as Switzerland as a hotbed of high-end horology, Walter Prendel sought to demonstrate the relevance of his research: based on the theories of his mentor, master watchmaker Alfred Helwig, he succeeded in improving the stability and regularity of his inclined tourbillon, with the balance-spring assembly inclined at 30° to the horizontal.

HYT Conical Tourbillon Panda limited edition

As a brand that consistently maintains the momentum of its advances in contemporary haute horlogerie, it is only natural for HYT to incorporate such a tourbillon into its new watch. On the HYT Conical Tourbillon Panda, it completes a full clockwise revolution in 30 seconds. Its graceful movement, marked by spheres of different sizes, creates a mesmerising spectacle. Each sphere, each incremental motion, celebrates balance and precision. The impeccable finishes, from chamfered bridges to polished screw heads, further underscore the sense of pursuit of perfection throughout the entire piece.

Nestled on the centre’s periphery, three exceptional, spherical white agate gemstones, each measuring 2.5 mm in diameter, amplify the vibrant pulsations of this visual spectacle, and, concurrently, hint at the subtle rhythm of the tourbillon. The spheres rotate at harmonious yet differing speeds. The first completes 4 rotations per minute; the second moves at 5 turns per minute, and the last at 6 turns per minute. Each sphere is complemented by a finely finished counterweight in white.

HYT Conical Tourbillon Panda limited edition

The timepiece’s brilliance is underscored by the haute horlogerie tradition in its craftsmanship, from the titanium tourbillon cage to the chamfered, drawn, polished, and satin-finished bridges, and the polished screw heads, along with six smaller spheres, each 1.5mm in diameter. The technical efficiency of HYT’s conical tourbillon thus enables the harmonious animation of the spheres’ independent rotations.

The watch assembly consists of 533 components, with the tourbillon cage alone comprising 159 components. Adding the dial’s 39 components and the 66 that make up the case, the entire HYT Conical Tourbillon Panda totals 750 components – all meticulously checked, assembled and rechecked by hand. HYT has designed a specific black fluidic module for this exceptional tourbillon movement; together they are housed in a 48mm titanium case coated in white ceramic and topped by a dome-shaped crystal with a multilayer anti-reflective treatment on both sides to enhance the visual allure of this ensemble.

The limited series of the HYT Conical Tourbillon Panda consists of 8 pieces.

HYT Conical Tourbillon Panda limited edition

TECHNICAL SPECIFICATIONS

REFERENCE: H03236-A
LIMITED EDITION: 8 PIECES
RECOMMENDED RETAIL PRICE: CHF 355’000 (excluding VAT)

CASE

  • Titanium case, coated in white ceramic
  • Titanium crown with white ceramic coating and black DLC
  • coated titanium insert
  • Domed (box) sapphire crystal with antireflective treatment
  • Titanium side grilles and frame, coated in white ceramic
  • Water-resistant to 30 meters

CASEBACK ENGRAVING: HS 39

DIAL

  • White agate chapter ring
  • 3D appliques with black coating, luminescent white numerals and logo (Super-LumiNova®)
  • Borosilicate capillary tube with black fluid
  • Matte black minute hand, white Super-LumiNova

FUNCTIONS

  • Retrograde fluidic hour indication
  • Central minute hand
  • Tourbillon
  • Chaotic animation
  • 3 spheres in white agate gemstone, 2.5mm in diameter, with one counterweight each; in the tourbillon cage: 6 spheres, 1.5mm in diameter (2 in white, 4 in black)

STRAP

  • White rubber strap

MOVEMENT

  • Reference: 701-TC (533 components)
  • Type: Mechanical
  • Frequency: 21,600 vph (3 Hz)
  • Jewels: 61
  • Winding: Winding tool
  • Power reserve: at least 40 hours
  • Finishes: High-end
  • Coating: Black finish, rhodium-plated 3N

BUCKLE

  • Pin buckle
  • Black DLC titanium
  • Satin-brushed and sandblasted finishes

DIMENSIONS

  • Width: 48.00 mm
  • Length: 52.30 mm
  • Thickness: 25.15 mm
