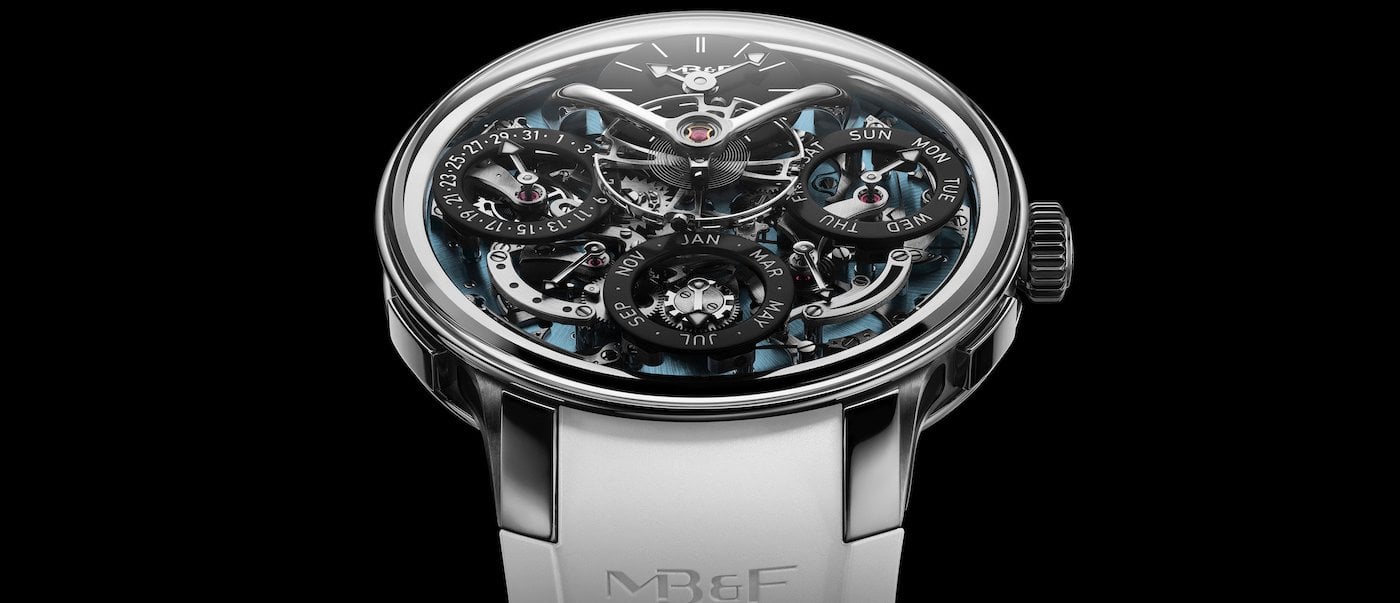

he LM Perpetual Evo was initially launched in three limited editions in zirconium, followed by a titanium edition with green CVD dial-plate. In 2024, MB&F introduces a new icy blue dial-plate in the same highly-resistant titanium case, replacing its green predecessor. All editions feature a closely-fitted, integrated rubber strap for the smoothest wearing experience of any MB&F Machine ever.
A 44mm case in zirconium or titanium, modern metals with material properties surpassing stainless steel. A case profile that emphasises openness and extreme clarity. A specially developed monobloc shock-absorbing system – “FlexRing” – that makes for the most robust Machine ever to emerge from MB&F. The LM Perpetual Engine, designed by Stephen McDonnell, an award-winning perpetual calendar that replaces traditional constructions with an innovative mechanical processor.
The MB&F collection has welcomed several complications and horologically prestigious mechanisms. In terms of combining prestige, tradition and innovation, however, Legacy Machine Perpetual has remained at the apex of MB&F watchmaking savoir-faire since it was introduced in 2015.
Although the 44mm diameter is unchanged from its 2015 iteration, the new Evo case design features a no-bezel construction, with the domed sapphire crystal fused directly to the case. The increased openness of this design highlights the equilibrium between the legibility of LM Perpetual Evo’s calendar indications and the cinematic play of the engine components - surmounted by the iconic MB&F hovering balance wheel. This expansive new presentation of the LM Perpetual Engine was no simple design reconfiguration. New geometries for the sapphire crystal had to be calculated, achieving the mechanically opposing aims of maintaining structural strength and decreasing its height-to-diameter ratio. Freeing LM Perpetual Evo from the bezel also necessitated the use of a sophisticated thermal bonding system between the sapphire crystal and the case.
![MB&F Legacy Machine Perpetual Evo titanium welcomes a blue version](https://www.europastar.com/local/cache-gd2/2a/0cadf98ad5181e357205806a308c41.jpg?1722092377)
The previously circular pushers for adjusting the perpetual calendar have been enlarged into double-sprung oblong actuators, boosting the tactile comfort and ease of adjustment. The LM Perpetual Evo is rated at 80m of water resistance, enabled by its screw-down crown. A small, but essential, detail of implementing a screw-down crown is the débrayage of the winding stem, disengaging the crown from the winding mechanism when it is pushed in and tightened, which eliminates the chance of manually over-winding the mainspring barrel.
An additional new element of the LM Perpetual Evo is the FlexRing: an annular dampener fitted between case and movement, providing shock protection along the vertical and lateral axes. Machined from a single block of stainless steel, the dampener imparts exceptional robustness to the perpetual calendar, a function that is associated with classicism and elegance, but is arguably the most pragmatic and utilitarian of all the high complications.
When Stephen McDonnell set out to redesign the perpetual calendar for MB&F, he proposed a system that rethought the entire mechanical basis of the complication. The LM Perpetual uses a “mechanical processor” consisting of a series of superimposed disks. This revolutionary processor takes the default number of days in the month at 28 - because, logically, all months have at least 28 days - and then adds the extra days as required by each individual month. This ensures that each month has exactly the right number of days, and removes the possibility of the date jumping incorrectly. An inbuilt safety feature disconnects the quickset pushers during the date changeover, so that even if the pushers are accidentally actuated whilst the date is changing, there is no risk of damage to the movement.
In design, in technique, in spirit, Legacy Machine Perpetual Evo has been an evolution of your story with MB&F.
![MB&F Legacy Machine Perpetual Evo titanium welcomes a blue version](https://www.europastar.com/local/cache-gd2/9b/c6f0e101e5f47507774ed08b5f687c.jpg?1722092377)
The LM Perpetual Evo is not a watch for sports. It is a watch for life.
Conventional perpetual calendars are generally modules comprising the complication, which is fitted on top of an existing movement. The calendar indications are synchronised by a long lever running across the top of the complication and passing through the centre. As the date changes, this long lever transmits information to the appropriate components and mechanisms by moving backwards and forwards. This traditional system, while beautiful in its interplay of levers and components, is also extremely unwieldy, restricting movement construction in several key ways that would make something like Legacy Machine Perpetual a mechanical impossibility.
Created by Stephen McDonnell and premiered in 2015, the LM Perpetual Engine was — and still is — one of the most innovative perpetual calendar systems to exist in modern watchmaking.
In the traditional system, perpetual calendars assume that, by default, all months have 31 days. At the end of months with fewer than 31 days, the mechanism quickly skips through the superfluous dates before arriving at the 1st of the new month. Any manipulation or adjustment of the date during changeover can result in damage to the mechanism, requiring expensive repairs by the manufacturer. The dates can also jump or skip during changeover, negating the whole point of the perpetual calendar in the first place, which is not requiring adjustment for years. Or decades.
![MB&F Legacy Machine Perpetual Evo titanium welcomes a blue version](https://www.europastar.com/local/cache-gd2/e3/b1b3d37ee26a92b8fda3c3bcd1f20a.jpg?1722092378)
Legacy Machine Perpetual uses a “mechanical processor” consisting of a series of superimposed disks. This revolutionary processor takes the default number of days in the month at 28 – because, logically, all months have at least 28 days – and then adds the extra days as required by each individual month. This ensures that each month has exactly the right number of days. There is no “skipping over” redundant days, so there is no possibility of the date jumping incorrectly.
Using a planetary cam, the mechanical processor also enables quick-setting of the year so that it displays correctly in the four-year leap year cycle, whereas traditional perpetual calendar mechanisms require the user to scroll through up to 47 months to arrive at the right month and year.
The mechanical processor also enables an inbuilt safety feature that disconnects the quick-set pushers during the date changeover, eliminating any risk of damage while the date is changing.
In 2015, Legacy Machine Perpetual premiered the world’s longest balance wheel pinion, connecting the hovering balance to the escapement on the back of the engine. This technical feat has since been showcased elsewhere in the MB&F collection, namely the Legacy Machine Split Escapement.
![MB&F Legacy Machine Perpetual Evo titanium welcomes a blue version](https://www.europastar.com/local/cache-gd2/f1/761fc5ac434a3d356c41d0ffe3649c.jpg?1722092378)
TECHNICAL SPECIFICATIONS
Legacy Machine Perpetual Evo has been created in five versions:
- Zirconium editions: three limited editions of 15 pieces each with a choice of orange CVD dial plate, blue CVD dial plate or black PVD dial plate;
- Titanium editions: with green CVD dial plate or icy blue CVD dial plate.
Engine
Fully integrated perpetual calendar developed for MB&F by Stephen McDonnell, featuring dial-side complication and mechanical processor system architecture with inbuilt safety mechanism. Manual winding with double mainspring barrels. Bespoke 14mm balance wheel with traditional regulating screws visible on top of the movement. Superlative hand finishing throughout respecting 19th century style; internal bevel angles highlighting hand craft; polished bevels; Geneva waves; hand-made engravings.
Galvanic black dials with both SLN numerals and hands (except for the leap year and power reserve)
FlexRing: an annular dampener fitted between case and movement, providing shock protection along the vertical and lateral axes.
Screw down crown
Power reserve: 72 hours
Balance frequency: 18,000bph / 2.5Hz
Number of components: 581
Number of jewels: 41
Functions/indications
Hours, minutes, day, date, month, retrograde leap year and power reserve indicators
Case
Material: Zirconium or Titanium
Dimensions: 44 x 17.5mm
Number of components: 70
Water resistance: 8ATM / 80m / 270 feet
Sapphire crystals
Sapphire crystals on top and display back treated with anti-reflective coating on both faces
Strap & buckle
Rubber strap with titanium folding buckle.
