Longines: the forgotten “first commercial quartz crystal watch”

On August 20, 1969, Longines convened the press in Geneva to announce the world’s first commercial quartz wristwatch. Known as the Ultra-Quartz, it was more accurate than any other production wristwatch. Prototypes were shown, photographs and documents were shared, and Longines promised that production would soon begin. Longines appeared to have a convincing lead over Seiko, Girard-Perregaux, Omega, and the Swiss CEH. However, the Longines Ultra-Quartz is nearly forgotten today. What happened?

I

n 1969, everyone knew that quartz watches were coming, but the first mover was Longines. On August 20, four months before Seiko and a full eight months before any other Swiss company, Longines announced the first commercial quartz watch. As celebrated in Europa Star (see below), the Ultra-Quartz featured a revolutionary “cybernetic” electronic movement that would finally bring quartz timing to the wrist.

Today, most say that Seiko’s Astron, announced on Christmas Day, was the first production quartz watch. Others point to the Swiss Beta 21, with a dozen models released at the Basel Fair in early April, 1970. So what happened to the pioneering Longines Ultra-Quartz?

On August 20, Longines announced “the first commercial quartz watch”. What happened to the pioneering Longines Ultra-Quartz?

Page 1

Europa Star celebrated the August, 1969 announcement of the Longines Ultra-Quartz, calling it “The first commercial quartz crystal watch”.
Europa Star celebrated the August, 1969 announcement of the Longines Ultra-Quartz, calling it “The first commercial quartz crystal watch”.
©Europa Star 4/1969

Page 2

Roger Federer Chronometer: Masterpiece Croneo COSC by Maurice Lacroix
©Europa Star 4/1969

Page 3

Roger Federer Chronometer: Masterpiece Croneo COSC by Maurice Lacroix
©Europa Star 4/1969



Keeping time with quartz crystal

Although the piezoelectric effect, in which a quartz crystal oscillates in an AC electric current, was discovered by Pierre and Jacques Curie in 1880, the frequency of vibration was too high to be useful in timekeeping. It would be over 60 years before Warren Marrison and J. W. Horton developed a way to couple a vibrating crystal to an electric motor using harmonics. This first electronic quartz clock was built at Bell Telephone Laboratories in New York and presented in October, 1927. In the next decade, quartz clocks were successfully built in the United States, the United Kingdom, and Germany.

The first electronic quartz clock was built at Bell Telephone Laboratories in New York and presented in October, 1927.

Since quartz vibrates at a consistent rate when subjected to an alternating electrical current, it is ideal as a timekeeping organ. It remains consistent even when the energy applied is weak or erratic, having a high “Q factor” as they say in physics. But the rate varies with temperature, so most early clocks housed the quartz crystal in a temperature-controlled oven. Additionally, the electronics required to drive the crystal oscillator and count the cycles produced used an array of large vacuum tubes and other electronic components. Although the concept of a quartz watch was easy to envision, it would be deemed impractical for decades.

Quartz clocks had been the world’s most accurate since the 1950s, and the race to miniaturize the technology for wristwatch use was an open secret. In his IEEE paper, “The Electronic Watch and Low-Power Circuits,” engineer Eric Vittoz, who worked on quartz clocks for the Swiss Centre Electronique Horloger (CEH), aptly points out the issue. “Hence a quartz wristwatch did not have to be invented: it already existed as a system. The “only” challenge was to reduce its volume to less than 3 cm3, and to lower its power consumption by 4 orders of magnitude, down to less than 10µW.”

This was the challenge for the CEH when creating the Beta series of quartz movements between 1965 and 1970, for Seiko with its Astron Cal. 35 project, and for Longines with the Ultra-Quartz.

Miniaturization of quartz chronometers became the next focus for Longines, Omega, and the Hattori (Seiko) company of Japan.

Quartz watches regularly set new records for accuracy at Swiss chronometer competitions.
Quartz watches regularly set new records for accuracy at Swiss chronometer competitions.
©Europa Star 1/1966

Longines Quartz Timing

Many Swiss companies and institutes entered the race to develop improved quartz electronic clocks for scientific and sports timing, notably Longines and Omega. In the 1940s, Longines was involved in developing photographic timing for racing, with the “Chrono-Caméra”, “Photogines”, and “Chronocinégines” incorporating electronic timing. These are detailed in Europa Star’s issue 200 in 1993.

In 1952, both companies deployed quartz electronic clocks to the Olympic Games in Helsinki and Oslo, as they vied for the publicity value of timing the games. The competition between Longines and Omega reached a head with the 1968 Olympic Games in Mexico: as both companies realized it was too costly, they combined their efforts as a new entity known as Swiss Timing, which still exists today.

“A quartz wristwatch did not have to be invented: it already existed as a system. The “only” challenge was to reduce its volume to less than 3 cm3, and to lower its power consumption by 4 orders of magnitude, down to less than 10µW.”

Longines developed ultra-accurate quartz clocks in the 1950s for scientific and sports timing.
Longines developed ultra-accurate quartz clocks in the 1950s for scientific and sports timing.
©Europa Star 4/1967

Longines and Omega also competed to develop a quartz electronic chronometer for science and industrial use. In 1954, a Longines quartz clock set the record for precision at the Neuchâtel Observatory competition. This large chronometer was continuously improved for a decade, and in 1965 it reached an astonishing score of 0.05 points, running within one second in three years! These were commercialized and used in scientific studies and broadcasting, packaged in a box the size of a desktop computer.

Longines Marine Chronometer bested Seiko at the 1965 Neuchâtel competition.
Longines Marine Chronometer bested Seiko at the 1965 Neuchâtel competition.
©Europa Star 2/1965

Miniaturization of quartz chronometers became the next focus for Longines, Omega, and the Hattori (Seiko) company of Japan. Marine chronometers using quartz technology were created in the early 1960s, and were miniaturized to a roughly-50 mm3 in 1964. Longines teamed up with newly-formed quartz innovator Bernard Golay SA to develop a compact quartz movement, and progressed rapidly.

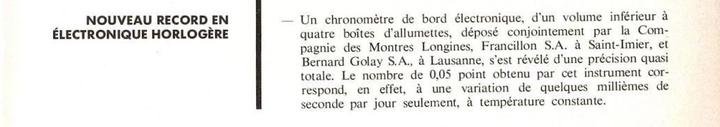

An improved 1965 version of the Golay-designed Micro-Quartz chronometer scored 0.15 in the Neuchâtel Observatory contest, with a daily rate better than 0.1 seconds. This clock used a 12 KHz quartz oscillator with a temperature compensation circuit, enabling it to maintain performance from -20 to +60 C. The frequency divider circuit operated a 4 Hz stepper motor, giving the seconds hand a sweep similar to a conventional watch.

In the 1960s, Longines teamed up with newly-formed quartz innovator Bernard Golay SA to develop a compact quartz movement, and progressed rapidly.

Golay engineer Andre Cachin is credited in patents with inventing many of the components of the Micro-Quartz, including the electromagnetic micromotor and electronic circuit used to sustain the quartz oscillation. Jean-Claude Berney is also named in patents, and would later patent the concept of a quartz watch powered by a mainspring for Ebauches SA, as produced in 1988 by Jean d’Eve and Seiko.

The Longines/Golay Pocket Quartz Chronometer was not exactly a “pocket watch”.
The Longines/Golay Pocket Quartz Chronometer was not exactly a “pocket watch”.
©Europa Star 4/1967

The Golay/Longines concept was further miniaturized, with a true pocket-sized chronometer introduced in 1966. It scored 0.54 points in the Neuchâtel Observatory contest, suggesting that a quartz watch was finally within reach. But it was Armin Frei of the the Swiss Centre Electronique Horloger (CEH), an industry consortium, that would create the world’s first quartz watch prototype.

His Beta 1 movement was tested along with the derived Beta 2 and prototypes from the Japanese firm Hattori (known as Seiko) at Neuchâtel in 1967. In all, more than twenty prototype quartz watch movements were tested that year, dominating the results and showing that quartz was the future (see my blog, Grail Watch, for more detail on the development of the Beta 21).

Longines announced the first production quartz watch

Longines and Golay pressed ahead with development of a production quartz watch movement. The challenge of dividing the high-frequency quartz oscillation to drive a wheel train and hands remained, however. Although a series of flip-flop circuits could easily reduce the rate, the sheer number of components required drew too much power to run for long. This is why the CEH focused on Max Forrer’s Beta 2 design for their production Beta 21 quartz movement: it used just 5 dividers rather than the 14 of Armin Frei’s more elegant design.

Integrated circuits showed promise, and the CEH was making rapid progress in this area. But Longines and Golay did not have access to such technology. Although they were able to make a divider circuit using individual components, this was too costly, power-hungry, and difficult to construct. The production Longines quartz watch would have to use a different approach to obtain a useful frequency from the oscillation of the quartz crystal.

The challenge of dividing the high-frequency quartz oscillation to drive a wheel train and hands remained.

Longines lacked integrated circuit technology, so they developed a unique “cybernetic” approach using discrete electronic components with Bernard Golay SA.
Longines lacked integrated circuit technology, so they developed a unique “cybernetic” approach using discrete electronic components with Bernard Golay SA.
©Europa Star 2/1972

A jazz soloist does not need to match every beat of the drummer, he only needs to “come home” on the downbeat. Longines took a similar approach to create a watch movement that was synchronized to quartz without using a power-hungry divider circuit. Using just 40 electronic components, Longines drove a vibration motor at 170 Hz and adjusted it to match the beat of the 9150 Hz quartz crystal. American mathematician Norbert Wiener coined the term “cybernetic” in 1948, and his concept was to use feedback to fine-tune a system. This was a popular term in the 1969s and would become the name used by Longines to describe their quartz movement.

Using a vibration motor to drive the wheel train, similar to the popular Bulova Accutron tuning fork movement, Longines used a flat bar with permanent magnets oscillating between electromagnets. A tiny finger pushes a drive gear forward, one tooth at a time. The CEH Beta 2 used a similar vibration motor driven directly by the reduced quartz frequency, but Longines allowed theirs to vibrate freely like the Accutron. It was adjusted at each beat to match the rhythm of the quartz crystal. Thanks to this breakthrough cybernetic design, Longines engineers felt that they would be able to economically produce a quartz wristwatch.

Longines allowed the motor to vibrate freely, like the Accutron: it was adjusted at each beat to match the rhythm of the quartz crystal. The brand appeared to have a convincing lead over Seiko, Girard-Perregaux, Omega, and the Swiss CEH.

On August 20, 1969, Longines convened the press in Geneva to announce the world’s first commercial quartz wristwatch. Known as the Ultra-Quartz, it was more accurate than any other production wristwatch. Prototypes were shown, photographs and documents were shared, and Longines promised that production would soon begin. Longines appeared to have a convincing lead over Seiko, Girard-Perregaux, Omega, and the Swiss CEH.

The fate of the Longines Ultra-Quartz

Although touted in 1969 as the world’s first quartz wristwatch, the Longines Ultra-Quartz is nearly forgotten today. For example, Christian Piguet does not mention Longines even once in his excellent history of the CEH Beta project, “The First Quartz Electronic Watch”. But then again he also fails to mention the independent projects at Girard-Perregaux and Omega that were announced alongside the Beta 21.

None of these projects gets a mention in “Engineering Time: Inventing the Electronic Wristwatch” by Carlene Stephens and Maggie Dennis either. And it is frequently repeated online, from Wikipedia to Hodinkee, that the Seiko Astron was the first production quartz wristwatch.

The Longines Ultra-Quartz was unlike any other electronic watch.
The Longines Ultra-Quartz was unlike any other electronic watch.
©Europa Star 2/1970

The reason the Ultra-Quartz is overlooked is simply that Longines was unable to produce this revolutionary watch. Developed by Golay and Longines’ research department, the Ultra-Quartz required extensive re-engineering before the separate manufacturing division could hope to build it at scale.

Fellow Europa Star contributor Pierre-Yves Donzé has written extensively about this, and describes the challenge in his excellent 2019 paper, “Dynamics of Innovation in the Electronic Watch Industry”, which served as a reference to this article. Legendary Swiss engineer Claude Ray was given the task of moving the Ultra-Quartz into production and it would take two long years before it was manufactured.

The reason the Ultra-Quartz is overlooked is simply that Longines was unable to produce this revolutionary watch in time. In the end, the brand only released a few hundred examples of the Ultra-Quartz.

Seiko produced a few hundred Astron quartz watches and released some for sale before the end of 1969. The CEH members, including Longines and Omega, built thousands of examples of the Beta 21 starting in 1970, showing over a dozen models at the Basel Fair that year. Omega and Girard-Perregaux also showed in-house quartz movements at the fair that year, and all of these quartz movements overshadowed Longines. The CEH was even able to move an updated Beta movement into production before Longines delivered the first Ultra-Quartz to a customer.

Longines presented both the Quartz-Chron, using the CEH Beta 21, and their own in-house Ultra-Quartz models at the Basel Fair in 1970.
Longines presented both the Quartz-Chron, using the CEH Beta 21, and their own in-house Ultra-Quartz models at the Basel Fair in 1970.

In the end, Longines only produced a few hundred examples of the Ultra-Quartz. Ebauches SA became the primary shareholder of Longines during this time, but the firm continued to develop its own quartz technology. After Golay’s Ultra-Quartz failed to live up to its promise, the company began work on a new generation of quartz movements. They even worked with Texas Instruments to develop a digital quartz watch, but they did not pursue this direction.

Although they used quartz movements from Ebauches SA for a time, Longines did develop their own in-house technology later in the decade. This was part of a transformation of the company into one of the leading Swiss watch producers through the quartz crisis and into modern times.

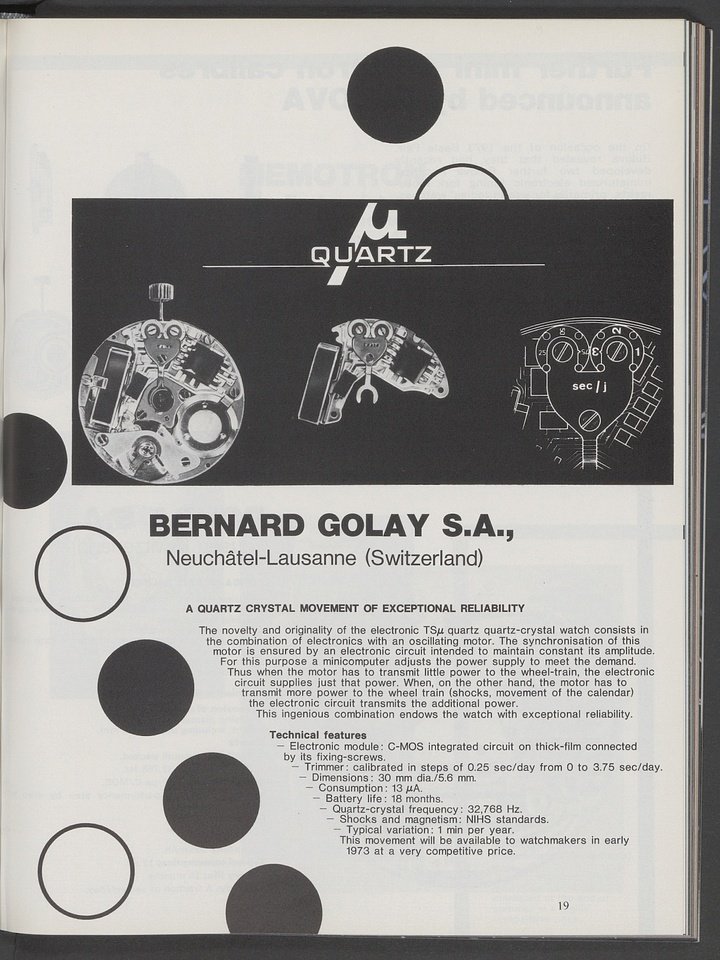

Golay later developed an inexpensive 32 KHz quartz movement that used an oscillating balance rather than a vibration motor. This was shown on the Corum stand at the Basel Fair in 1972. Known as the TSµ Quartz, the oscillating motor was adjusted using a low-power CMOS integrated circuit.

Bernard Golay SA later developed an inexpensive 32 KHz quartz movement that used an oscillating balance rather than a vibration motor.
Bernard Golay SA later developed an inexpensive 32 KHz quartz movement that used an oscillating balance rather than a vibration motor.
©Europa Star 3/1973

Even Bulova got a head start, adding a quartz driver to the Accuquartz and delivering the first low-cost quartz watch in 1972. But American companies like Intersil and Motorola were soon offering commercial quartz watch chips, and the industry was able to produce inexpensive stepper motors in volume. These alternative designs would prove short-lived.

Although they used quartz movements from Ebauches SA for a time, Longines did develop their own in-house technology later in the decade. This was part of a transformation of the company into one of the leading Swiss watch producers through the quartz crisis and into modern times.

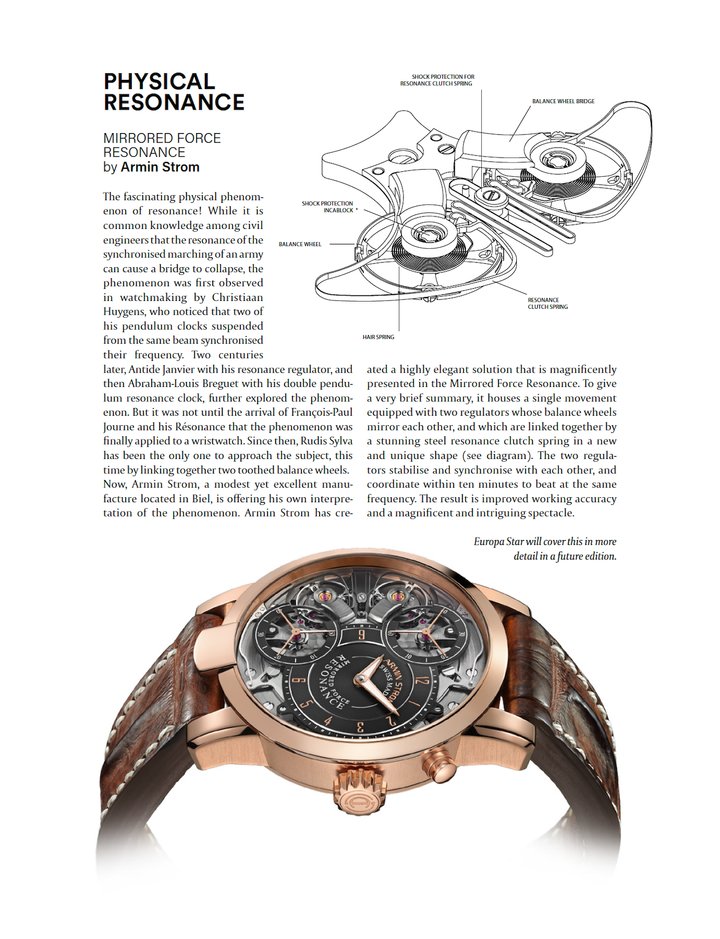

Armin Strom Mirrored Force Resonance
