An introduction to MB&F’s LM Sequential Evo

June 2022


An introduction to MB&F's LM Sequential Evo

This new model explodes the current limits of what we thought chronographs could do. Just like the 2015 Legacy Machine Perpetual, the last major Stephen McDonnell movement for MB&F, LM Sequential EVO involved a back-to-the-drawing board approach towards our most basic assumptions on chronograph construction.

C

onceived by one of the very earliest MB&F collaborators and Friends, Stephen McDonnell, LM Sequential EVO explodes the current limits of what we thought chronographs could do. Just like the 2015 Legacy Machine Perpetual, the last major Stephen McDonnell movement for MB&F, LM Sequential EVO involved a back-to-the-drawing board approach towards our most basic assumptions on chronograph construction.

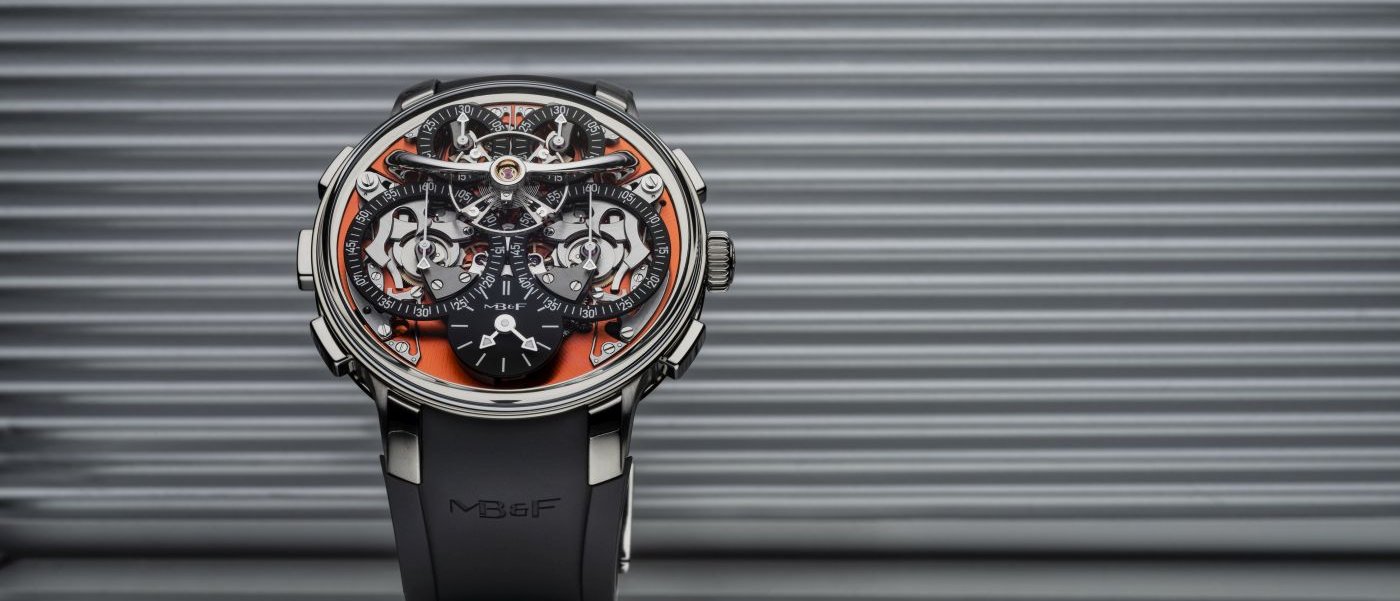

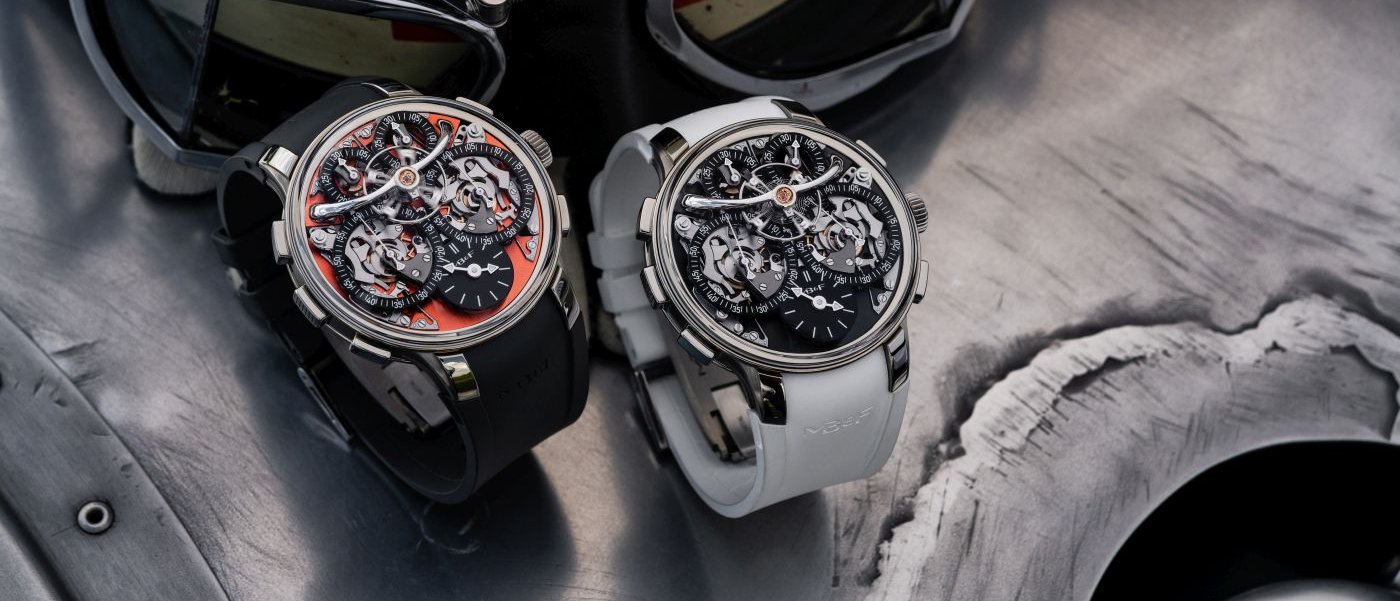

The dial plate of LM Sequential EVO, available in atomic orange or coal black, features two chronograph displays. One has its seconds display at 9 o’clock and minutes display at 11 o’clock. The other has its seconds display at 3 o’clock and minutes display at 1 o’clock. Each of these chronograph displays can be started, stopped, and reset completely independently of each other, using the start/stop and reset pushers on their respective sides of the case. These make up the four chronograph pushers you would usually associate with having two chronograph mechanisms in one watch.

However, there is a fifth pusher, located at the 9 o’clock position: the “Twinverter”. This pusher is the secret that elevates the functionality of the LM Sequential EVO beyond any existing chronograph wristwatch. It controls both chronograph systems, operating as a binary switch that inverts the current start/stop status of each chronograph. This means that if both chronograph displays happen to be stopped (at zero position or otherwise), pressing the Twinverter will cause both of them to start simultaneously. If they are both running, the Twinverter makes them stop. If one is running and the other is stopped, the Twinverter stops the one that is running and starts the one that is stopped.

LM Sequential EVO can therefore be used just as you would any other chronograph, but thanks to its twin chronograph mechanisms, it can also perform the same functions as a split-seconds chronograph. In fact, thanks to the novel mechanical improvements to chronograph construction as conceived and implemented by Stephen McDonnell, it even outperforms conventional chronographs and split-seconds chronographs in terms of energy efficiency and precision.

But there’s much more: the switch function that comes with the Twinverter allows LM Sequential EVO to do things that no chronograph wristwatch, no matter how complicated, has been able to accomplish so far. Here are a few things that the LM Sequential EVO can do, that existing chronographs cannot:

  • “Independent mode”: measure the duration of multiple events with separate starting points and end points, even when the events overlap in timing;
  • “Simultaneous mode”: measure the individual durations of two events that start simultaneously, but have different end points;
  • “Cumulative mode”: measure the individual cumulative durations of two discontinuous events;
  • “Sequential mode (or lap mode)”: measure the individual sub-durations of a single continuous multiphase event, with provision for sub-durations that last over a minute.

Simultaneous mode is used for example in a race involving two competitors, starting simultaneously. The Twinverter allows to start both chronographs at exactly the same time, but the different end points can be easily recorded by pressing each chronograph’s individual start/stop pusher. To note, the durations of the events can exceed 60 seconds, which is the limit for the vast majority of split-second chronographs on the market.

Cumulative mode occurs frequently in the work environment, where you might want to know how much time you spend on two separate projects as you switch between them throughout the day. By starting one chronograph when you begin working on one task, and then using the Twinverter when you shift focus to the second task (switching again when you go back to the first), you can easily track the amount of time you cumulatively spend on each task. Another example of this usage is the timing of a chess match.

An introduction to MB&F's LM Sequential Evo

Sequential mode (or lap mode) has its greatest relevance in competitive sports, where it can be used to measure individual lap times. Starting one chronograph at the beginning of an event and using the Twinverter upon the completion of a lap instantly launches the second chronograph in order to time the next lap, while the first chronograph is stopped, allowing ample time for the timing result to be noted down.

The stopped chronograph can then be reset to zero, ready to be relaunched with the Twinverter for the following lap. Thanks to its minutes totalisers, LM Sequential EVO can be used effectively in sporting events with average lap times of over a minute (which includes the vast majority of lap-racing sports).

Independent mode can be used for instance in the preparation of a meal, where different things need to be cooked for different periods of time, at different points in time. You would operate the two chronograph mechanisms via their respective pushers — for instance, starting one when you put your pasta into boiling water and starting the other when the vegetables go in the oven. In fact, this application of LM Sequential EVO comes in handy in all areas of personal productivity. At the gym, for example, when trying to optimise your physical workout routine, one chronograph can be set to time your entire session whilst the second is used to record your time at each station, or the downtime in between.

Most other high-concept chronographs that are designed to increase the uses of the chronograph go about it by tailoring the mechanism towards highly specific, sports-oriented situations. In comparison, LM Sequential EVO operates in every aspect of daily life, in contexts familiar to all of us. Its zirconium case, 80 metres of water resistance and internal “FlexRing” damping system give unprecedented resilience to a movement this complex. All this makes the “EVO” collection a natural home for MB&F’s first chronograph, reinforcing the identity set in place when the first EVO – the LM Perpetual EVO – was established in 2020: “not a watch for sports, a watch for life”.

After all, despite its mechanical profundity, LM Sequential EVO is easy to use, and more importantly, it is actually useful. You might even wonder why no one has done it before. When you think about it, it seems so intuitive; as straightforward as 1-2-3. One watch, with two chronograph mechanisms, that can be used in multiple ways.

The word chronograph has Greek etymological roots. The first part comes from χρόνος (chrónos), meaning time, as seen in words such as chronology and chronicle. The second part is derived from γρᾰ́φω (gráphō), meaning to write, to make a written record of something. Just as a phonograph describes a system of recorded sound and a photograph is recorded light, a chronograph gives us recorded time. In the early 19th century, chronographs were associated with horseracing, developed according to the necessity to precisely determine the timing results of such a fastpaced sport. These early chronographs used droplets of ink to mark timings on dials even as they continued to run, allowing specific timings to be preserved for the record (at least until the chronograph was stopped and the dial wiped clean for the next race).

Subsequent developments of chronograph apparatuses,also related to track events, included a lever, connected to multiple individual chronographs so that they could all be started simultaneously instead of having multiple timers operated separately (a sub-optimal system that inevitably incorporated small differences between the starting times of each).

An introduction to MB&F's LM Sequential Evo

When Maximilian Büsser spoke to Stephen McDonnell in 2016, raising the possibility of a follow-up to Legacy Machine Perpetual (2015), the response from Stephen was four words long: “I have an idea.” It was a response as cryptic as it was exciting, particularly if you knew the kind of ideas that came from the mind of Stephen McDonnell. That conversation with Max accelerated a train of thought that Stephen had been mulling over for some time - that most modern chronographs were unable to adequately perform the job they had been designed for.

The combined chronograph lever immediately suggested itself to him as a way to ensure that race events could be measured with maximum precision with a manually operated mechanical chronograph. Allowing the chronographs systems to be operated separately meant that different timings could be taken and preserved long enough for the results to be recorded.

From then on, the various solutions fell into place. Using two separate chronograph mechanisms linked to the same oscillator - an idea practically made for the Legacy Machine, with its central flying balance wheel - meant that timing errors due to tiny chronometric discrepancies between different timers would be eliminated.

Stephen McDonnell continued to refine his vision of the ideal chronograph, reconfiguring the chronograph vertical clutch to sit within the main gear train in order to eliminate the infamous flutter of the chronograph seconds hand without the need for an amplitude-draining friction spring. He incorporated internally jewelled chronograph clutch shafts that would make amplitude fluctuation between the active and inactive modes of the chronograph a thing of history.

The crowning touch to Stephen McDonnell’s ideal chronograph, augmenting the role played by the combined starting lever in historical chronograph systems, is the Twinverter concept. The ability to toggle instantly between chronograph operating modes directly opens up this age-old complication to be used in a variety of situations in modern daily life. It is the programming logic gate of mechanical watchmaking, a system that could have been devised only by the creator of the mechanical processor at the heart of Legacy Machine Perpetual.

Legacy Machine Perpetual EVO was launched in 2020, introducing the EVO collection into the world of MB&F. Based on the established codes of the Legacy Machine collection, EVO placed wearability, robustness and versatility at the core of its identity. Zirconium was used in the launch edition of the LM Perpetual EVO, and is now the debut case material for the LM Sequential EVO. It is a silvery-grey metal admired for its deep lustre, that is lighter than stainless steel and more durable than titanium.

Coupled with these exceptional properties, its hypoallergenic and anti-microbial attributes make it ideal for an active-lifestyle watch. Because zirconium is known to spontaneously ignite in powdered form, it can be highly dangerous to machine except under strict environmentally controlled conditions, explaining its rarity in the world of watchmaking.

A no-bezel case design emphasises the movement within, allowing the finely balanced and symmetrical work of Stephen McDonnell to be fully showcased. In LM Sequential EVO, the iconic sapphire-crystal dome characteristic of the LM collection underwent a complicated shift in geometry in order to accommodate the placement of the 3Hz (21,600vph) suspended balance in relation to the chronograph displays. Despite the final appearance of the dial crystal - forming a perfectly smooth arch - there are actually two subtle (and difficult to achieve) angles incorporated within the camber of the crystal in order to minimise the overall height of LM Sequential EVO when worn on the wrist. An integrated rubber strap, an essential EVO feature, makes for the smoothest wearing experience of any MB&F Machine ever.

Providing further comfort for the wearer (both on the wrist and in the mind), EVO utilises an annular dampener fitted between case and movement, providing shock protection along both vertical and lateral axes : the FlexRing. Machined from a single block of stainless steel, the dampener imparts exceptional robustness to the movement within, ensuring that EVO remains a watch that can and will follow you through all aspects of an active life.

Those who know the story of MB&F, will know that Northern Irish watchmaker Stephen McDonnell is counted among the key figures who brought the first creations of Max Büsser into the world. He was one of the handful of watchmakers who assembled the first few movements for what would become Horological Machine N°1.

A decade later, Stephen McDonnell re-entered the world of MB&F to develop the Legacy Machine Perpetual: a groundbreaking approach to one of the most prestigious traditional high complications, the perpetual calendar.

His philosophy of watchmaking is directly complementary to that of Max, taking a blue-sky approach to practical horology, compared to Max’s way of turning space-age fantasies into wrist-worn realities. They both have a knack for answering questions that most of us even realised we were asking. It is conceivable that in a parallel universe, one where the LM Sequential EVO Twinverter could be used on people, it would link Max and Stephen even further as watchmaking inverses of each other.

As MB&F enters the last stretch of its second decade, it’s appropriate that someone who helped the brand come to life is instrumental in bringing it to a new level of horological legitimacy. The 20th calibre of MB&F is more than a recorder of time. It is a recorder of history - between Maximilian Büsser, the brand he created, and the watchmaker who was there from the beginning.

An introduction to MB&F's LM Sequential Evo

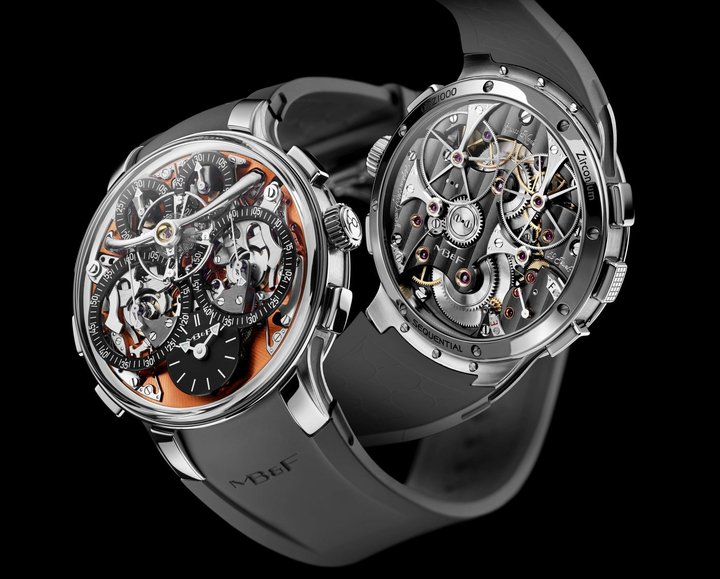

TECHNICAL SPECIFICATIONS

ENGINE

  • Fully integrated dual chronograph system developed for MB&F by Stephen McDonnell, featuring Twinverter switch allowing multiple timing modes.
  • Manual winding with double mainspring.
  • 72 hours (3 days) power reserve.

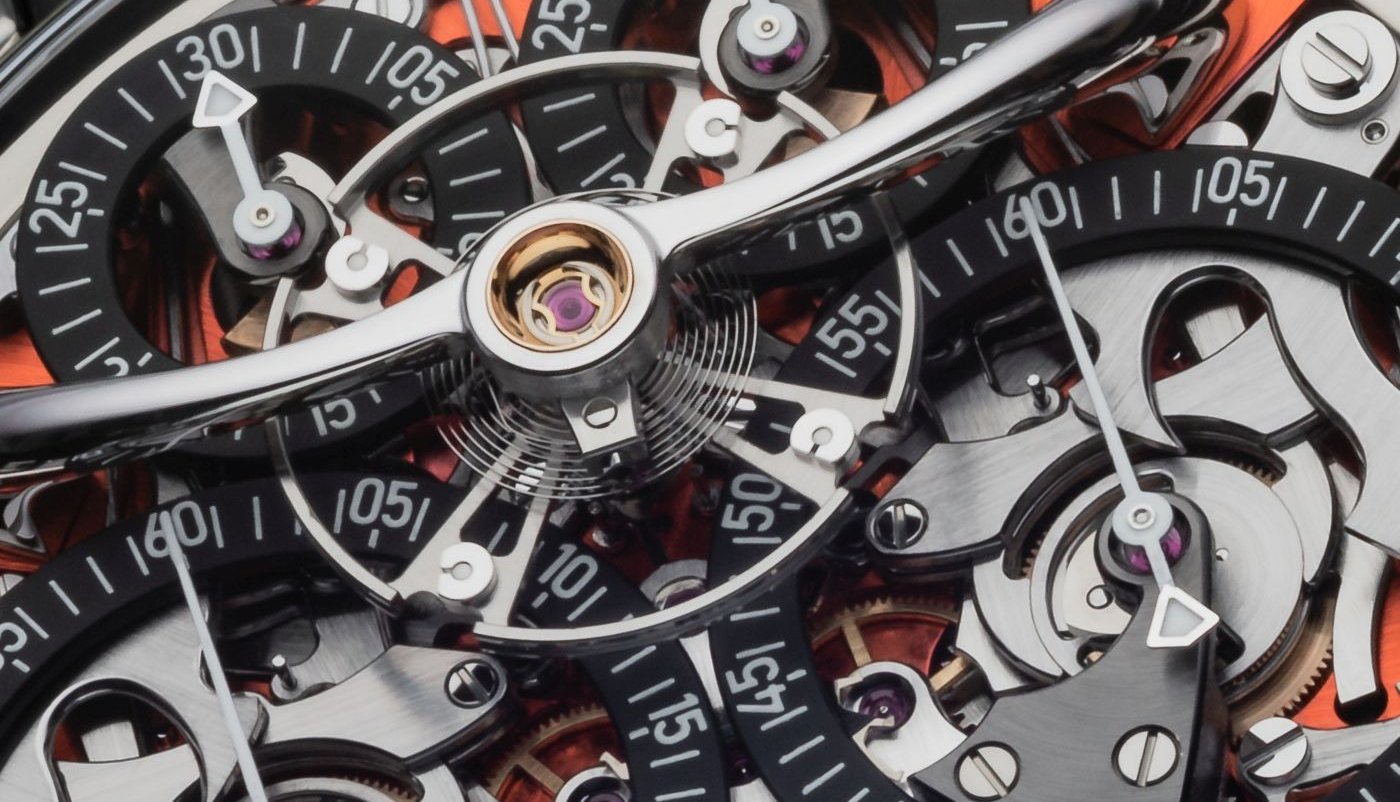

  • Flying balance wheel with regulating screws at 12 o’clock, Breguet overcoil.
  • Superlative hand finishing; internal bevel angles highlighting handcraft; polished bevels; Geneva waves; hand-made engravings, darkened bridges (NAC finish).
  • Galvanic black dials with Super-LumiNova on numerals and hands.
  • Balance frequency: 3Hz (21,600 vph).
  • Number of components: 585.
  • Number of jewels: 59.

FUNCTIONS

  • Time display (hours/minutes) at 6 o’clock.
  • Left chronograph : seconds displayed at 9 o’clock and minutes at 11 o’clock; start/stop pusher at 10 o’clock and reset at 8 o’clock.
  • Right chronograph : seconds displayed at 3 o’clock and minutes at 1 o’clock; start/stop pusher at 2 o’clock and reset at 4 o’clock.
  • Twinverter pusher at 9 o’clock: binary switch that inverts the current start/stop status of both chronographs.
  • Power reserve indication at the back of the movement.

CASE

  • Material: zirconium.
  • Dimensions : diameter 44mm x height 18.2mm.
  • Number of components : 74.
  • Water resistance : 80m / 8ATM / 270 feet.
  • Screw down crown.
  • FlexRing annular dampener fitted between case and movement, providing shock protection along the vertical and lateral axes.
  • Sapphire crystals on top and display back treated with anti-reflective coating on both faces.

STRAP & BUCKLE

  • Integrated rubber strap with titanium folding buckle.
